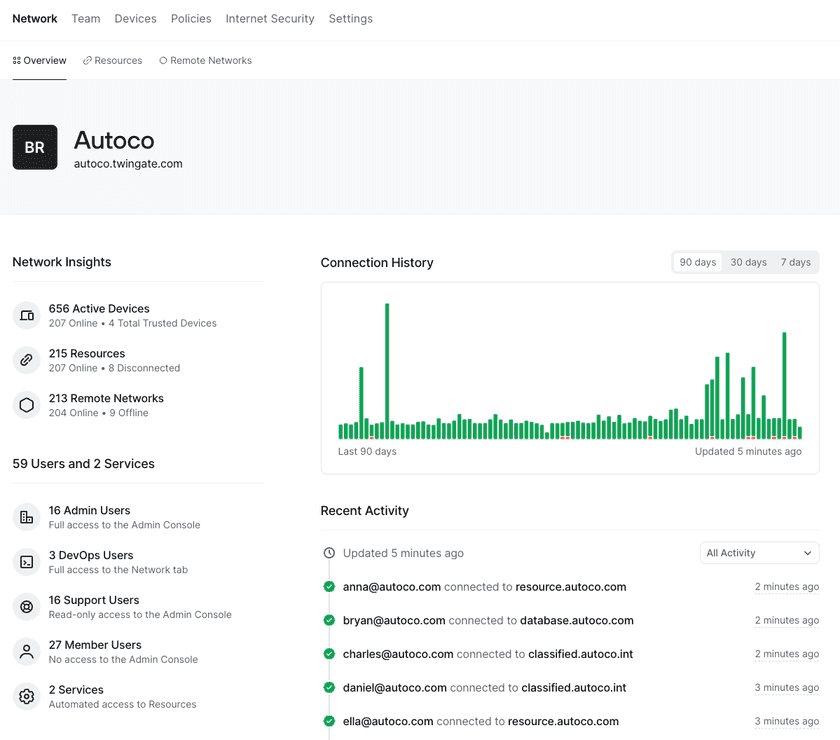

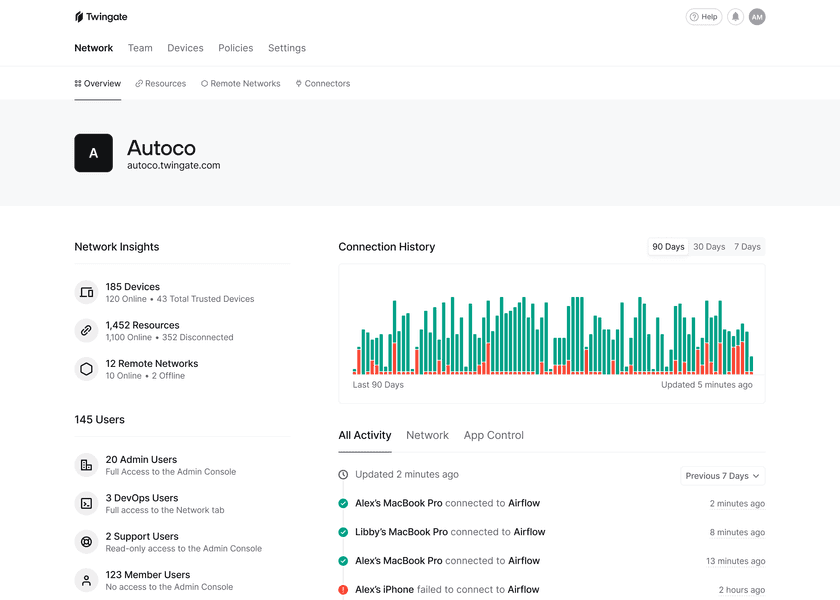

Network Overview

The Network Overview tab provides a snapshot of your current Network, showing key high level information, connections, and recent activity. This allows admins to quickly understand usage and easily drill down for more details.

Network Insights

Active Devices: Number of Devices with the status Active Online Devices: Number of Devices with a user logged into the Twingate Client Trusted Devices: Number of Devices that fulfill the requirements of a Trusted Profile

Resources: Number of Resources added to Twingate Online Resources: Number of Resources in Online Remote Networks Disconnected Resources: Number of Resources in Offline Remote Networks

Remote Networks: Number of Remote Networks created in Twingate Online Remote Networks: Number of Remote Networks with at least one online Connector Offline Remote Networks: Number of Remote Networks with no online Connectors

Users and Services

Admin Users: Number of users assigned the Admin Role DevOps Users: Number of users assigned the DevOps Role Support Users: Number of users assigned the Support Role Member Users: Number of users assigned the Member Role Services: Number of Service Accounts created in Twingate

Connection History

The Connection History graph shows the number of successful and failed connections in the past 7, 30, and 90 days. For the 30 and 90 day graphs, each bar represents the number of successful and failed connections in a day, while bars on the 7 day graph represent the number of successful and failed connections in an hour.

Recent Activity

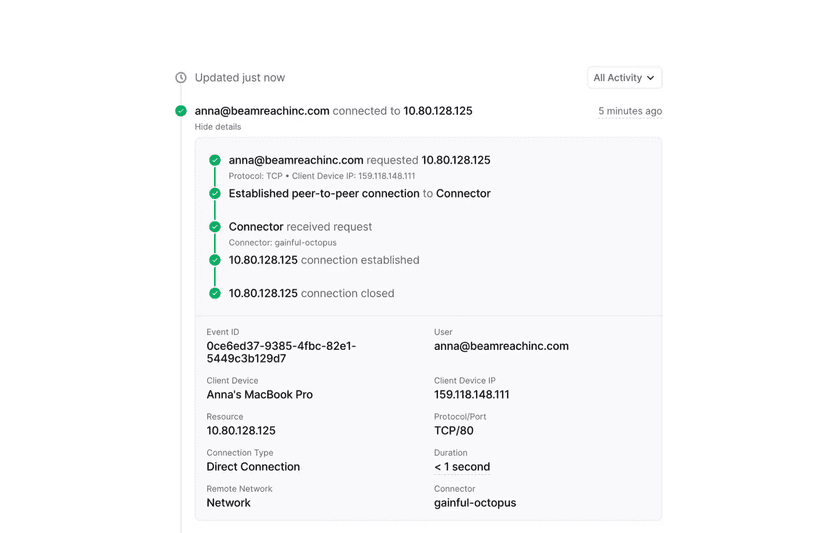

Network traffic across all Remote Networks is shown under the Recent Activity section. Clicking into specific events shows more details, including the Resource IP address, protocol, connection type, and duration.
